The bidimensional [0,1] --> [0,1]x[0,1] Peano Surjection -T defined with 4 digits- [La surjection bidimensionnelle [0,1] --> [0,1]x[0,1] de Peano -T défini avec 4 décimales-].





The bidimensional Peano Surjection:

Peano defined the following surjection:
                    [0,1] --> [0,1]x[0,1]
Let's T being a real number defined using the base 3:
                    T    = 0.A1A2A3... E [0,1] with Ai E {0,1,2}
Let's X(T) and Y(T) being 2 real functions of T defined as:
                    X(T) = 0.B1B2B3... E [0,1] with Bi E {0,1,2}
                    Y(T) = 0.C1C2C3... E [0,1] with Ci E {0,1,2}
with:
                    Bn = A2n-1 if A2+A4+...+A2n-0 is even
                    Bn = 2-A2n-1 otherwise

                    Cn = A2n if A1+A3+...+A2n-1 is even
                    Cn = 2-A2n otherwise

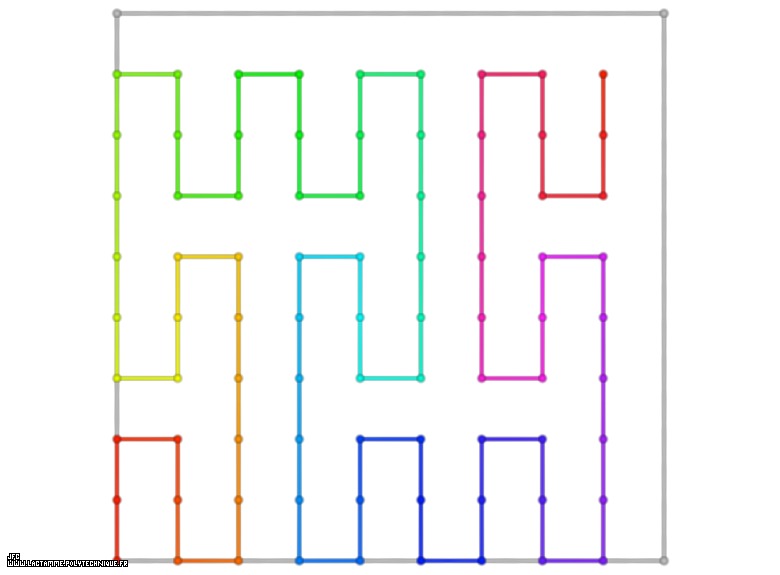

These 2 functions X(T) and Y(T) are the coordinates of a point P(T) inside the [0,1]x[0,1] square. The displayed "curve" is the trajectory of P(T) -displayed as little spheres- when T varies from 0 (lower left corner) to 1-epsilon (upper right corner).


See some related pictures (possibly including this one):

See the used color set to display the parameter T.



The tridimensional Peano Surjection:

A tridimensional surjection can be defined:
                    [0,1] --> [0,1]x[0,1]x[0,1]
as a generalization of the bidimensional one.

Let's T being a real number defined using the base 3:
                    T    = 0.A1A2A3... E [0,1] with Ai E {0,1,2}
Let's X(T), Y(T) and Z(T) being 3 real functions of T defined as:
                    X(T) = 0.B1B2B3... E [0,1] with Bi E {0,1,2}
                    Y(T) = 0.C1C2C3... E [0,1] with Ci E {0,1,2}
                    Y(T) = 0.D1D2D3... E [0,1] with Di E {0,1,2}
with:
                    Bn = A3n-2 if A3+A6+...+A3n-0 is even
                    Bn = 2-A3n-2 otherwise

                    Cn = A3n-1 if A2+A5+...+A3n-1 is even
                    Cn = 2-A3n-1 otherwise

                    Dn = A3n if A1+A4+...+A3n-2 is even
                    Dn = 2-A3n otherwise


These 3 functions X(T), Y(T) and Z(T) are the coordinates of a point P(T) inside the [0,1]x[0,1]x[0,1] cube. The displayed "curve" is the trajectory of P(T) -displayed as little spheres- when T varies from 0 (lower left corner) to 1-epsilon (upper right corner).


See some related pictures (possibly including this one):

See the used color set to display the parameter T.
